Máxima flexibilidad y ahorro energético en una solución compacta. Se instala e integra fácilmente en las instalaciones existentes para ayudar a cumplir con los códigos de energía y mejorar la eficiencia energética y la calidad de la energía.
Active, reactive, apparent energy (signed, four quadrant)Apparent power S, S1, S2, S3Demand power P, Q, SActive power P, P1, P2, P3Reactive power Q, Q1, Q2, Q3Power factorAverage current IavgPeak demand power PM, QM, SMFrequencyVoltage U21, U32, U13, V1, V2, V3
accuracy class
Class 0.2 conforming to ANSI C12.20Class 1S conforming to IEC 62053-24
measurement current
50…5000 A
measurement voltage
90 V AC 45…65 Hz minimum per phase480 V AC 45…65 Hz between phases300 V AC 45…65 Hz between phase and neutral
frequency measurement range
45…65 Hz
network frequency
50 Hz60 Hz
display type
Without Display
control type
ADDRESS, range: 1…99 with rotary switch(es)CT AMPS, range: 5…5000 with rotary switch(es)
local signalling
Status: LED (green and red)Line fault: 3 LED (green, orange and red)Dial pointer indication: LED (yellow)RX/TX: 2 LED (green, orange and red)
Signal
Current 0.333 V (impedance 33 kOhm)Voltage (impedance 2.5 MOhm)single phaseVoltage (impedance 5 MOhm)phase to phase
number of inputs
0
number of outputs
0
communication port protocol
Modbus RTU at 9600 bauds…115200 bauds (automatic detection)BACnet MS/TP at 9600 bauds…115200 bauds (automatic detection)
communication of data
Remote control ordersTotal energyNet energy
Demand intervals
External synchronisation to communicationFixed or rolling block
CE EN 61010-1CULus conforming to UL 61010-1BTLANSI
Maximum Width
1.84 in (46.63 mm)
depth
35.81 mm
height
6.00 in (152.36 mm)
net weight
8.82 lb(US) (4 kg)
Environment
measurement category
Category III 277 VCategory III 300 V
electromagnetic compatibility
Conducted and radiated emissions conforming to FCC part 15 class AConducted and radiated emissions conforming to EN 61000-6-4Conducted and radiated emissions conforming to EN 61326 + A1Immunity to conducted disturbances conforming to EN 61000-6-2Immunity to conducted disturbances conforming to EN 61326-1Immunity to radiated fields conforming to EN 61000-6-2Immunity to radiated fields conforming to EN 61326-1
IP degree of protection
IP20 conforming to IEC 60529
relative humidity
0…95 %
pollution degree
2
ambient air temperature for operation
-22…158 °F (-30…70 °C)
ambient air temperature for storage
-40…185 °F (-40…85 °C)
operating altitude
< 9842.52 ft (3000 m)
Ordering and shipping details
Category

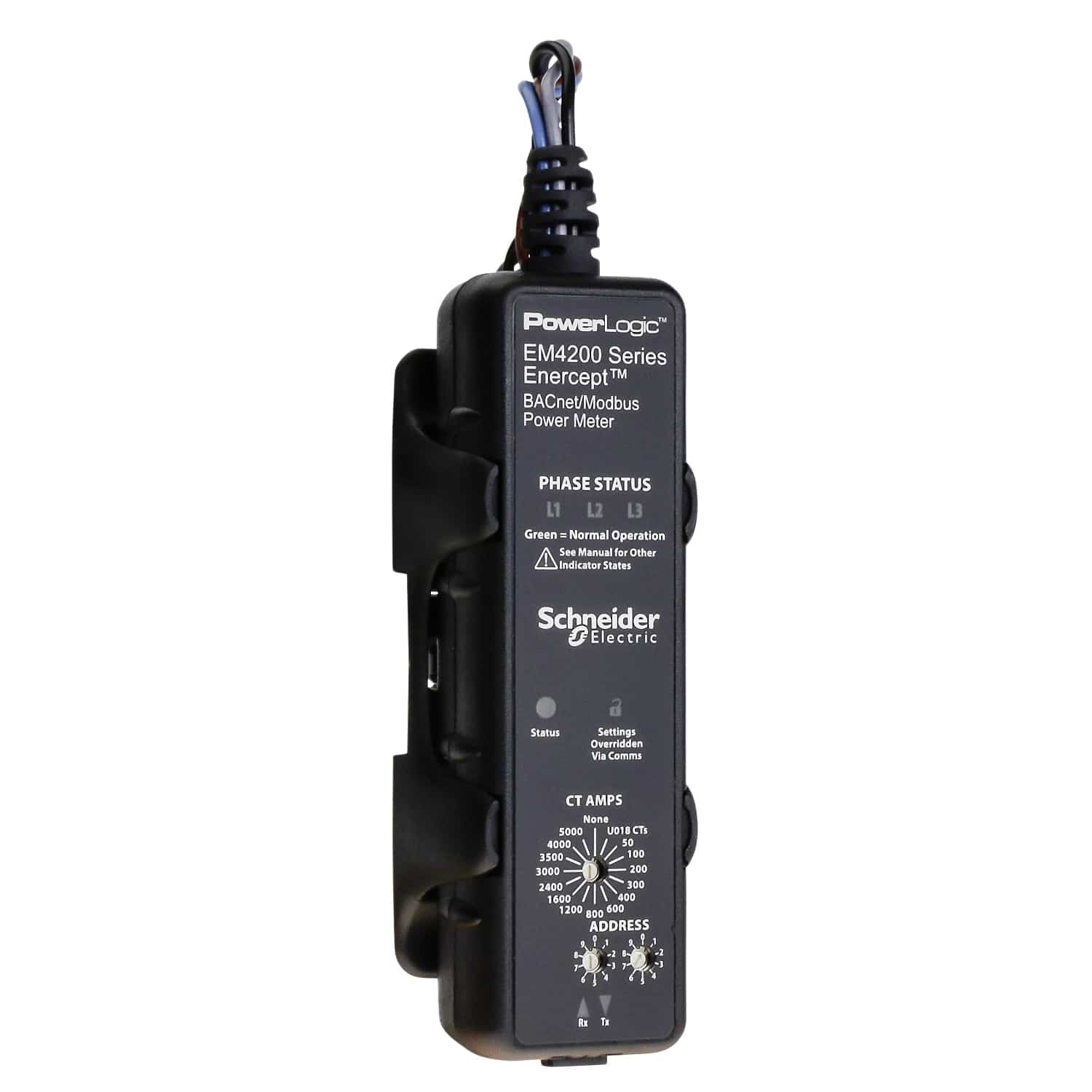

09791 – POWERLOGIC ENERCEPT POWER METER
Discount Schedule
PL1
GTIN
00785901189084
Nbr. of units in pkg.
1
Package weight(Lbs)
5 lb(US) (2.27 kg)
Returnability
No
Packing Units
Unit Type of Package 1
PCE
Package 1 Height
3.82 in (97 mm)
Package 1 width
8.31 in (211 mm)
Package 1 Length
9.49 in (241 mm)
Offer Sustainability
California proposition 65
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
REACh Regulation
REACh Declaration
REACh free of SVHC
Yes
EU RoHS Directive
Compliant EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Yes
China RoHS Regulation
China RoHS declaration Product out of China RoHS scope. Substance declaration for your information.
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
